Sinopec HDPE wire & cable grade has excellent mechanical and abrasion resistance properties. It has a strong ability to environment stress crack resistance and thermal stress crack resistance.
Applications of the Product
HDPE wire & cable grade is mainly used for producing communication cable jacket through fast-extrusion methods.
Package, Storage and Transportation

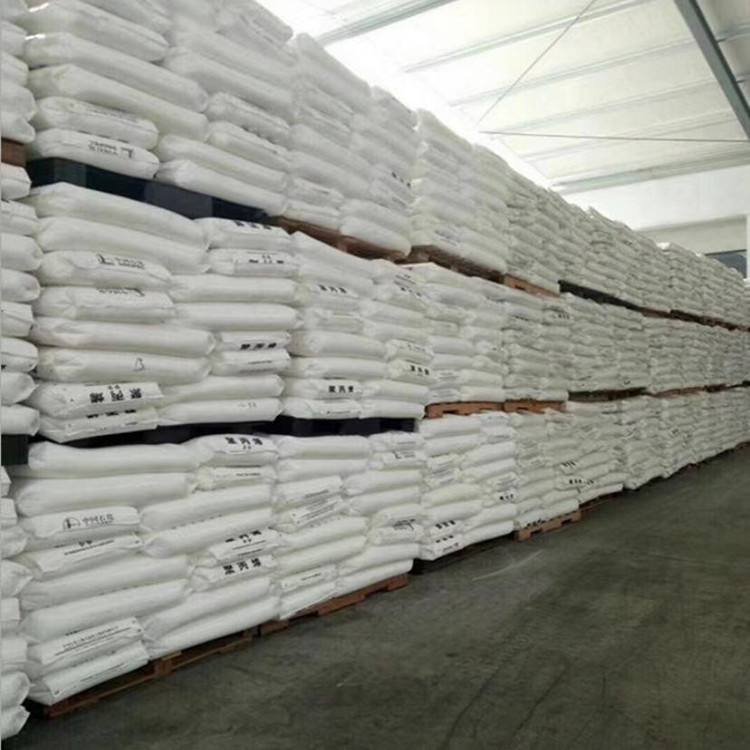

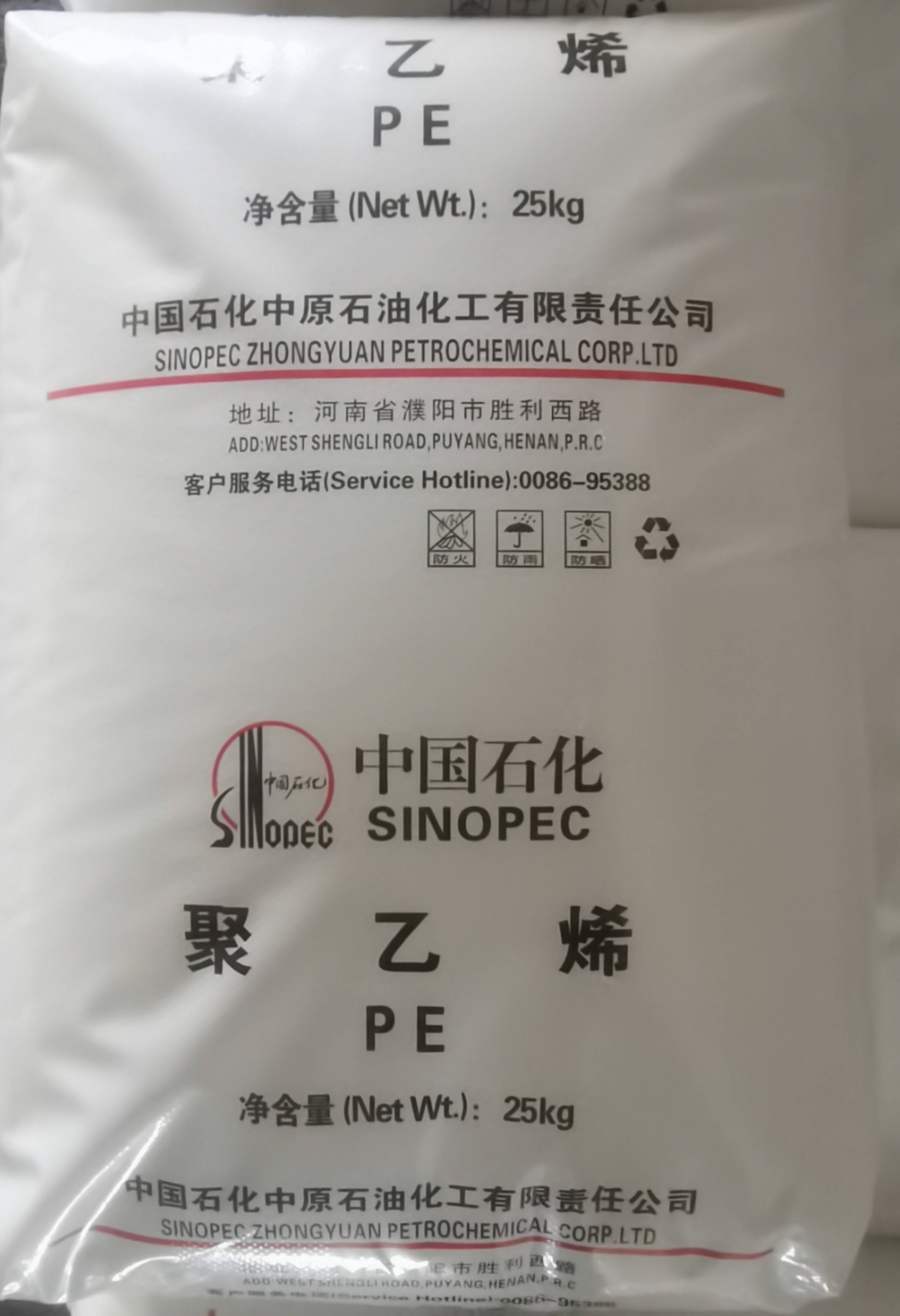

The resin is packaged in internally film-coated polypropylene woven bags, brown paper bags or laminated polyethylene film bags. The net weight is 25Kg/bag. The resin should be stored in a drafty, dry warehouse and away from fire and direct sunlight. It should not be piled up in the open air. During transportation, the material should not be exposed to strong sunlight or rain and should not be transported together with sand, soil, scrap metal, coal or glass. Transportation together with toxic, corrosive and flammable substance is strictly prohibited.
China Petroleum & chemical corporation Beijing Yanshan Branch Product Quality Certificate
Product name: polyethylene insulating materialYJ-10 Sampling point:XV-9529 Product brand:YJ-10 Sampling time:2019-11-24 Product batch:YSL19N24M1 Issuing date:2019-11-26 Implementation standard:Q/SH3155.ZH6.006-2015 Record number:YSSH-JJ-JL-SC-043 | |||
Analysis Item | Limited | Test Result | Test Method |
Tensile strength,MPa | ≥13.5 | 22.8 | GB/T 1040.3-2006 |
Tensile strain at break,% | ≥350 | 496 | GB/T 1040.3-2006 |
Air thermal aging(135℃，168h): *Tensile strength change rate *Tensile rupture strain rate | ≤20 | -9.8 | GB/T 2951.12-2008 |
≤20 | -4.1 | GB/T 2951.12-2008 | |
Thermal extension200℃，0.2MPa,15min: Strain under load,% Permanent deformation after cooling,% | ≤80 | 49 | GB/T 2951.21-2008 |
≤5 | -1 | GB/T 2951.21-2008 | |
*permittivity 50HZ,20℃ | ≤2.35 | 2.27 | GB/T 1409-2006 |
*Dielectric loss factor，50HZ,20℃ | ≤1✖10-3 | 0.00014 | GB/T 1409-2006 |
*Electric strength，MV/m | ≥25 | 35 | GB/T 1408.1-2016 |
*Volume resistivity, | ≥1.0 | 5.5 | GB/T 1410-2006 |
*gel content,% | ≥80 | 84 | JB/T 10437-2004 Appendix A |
